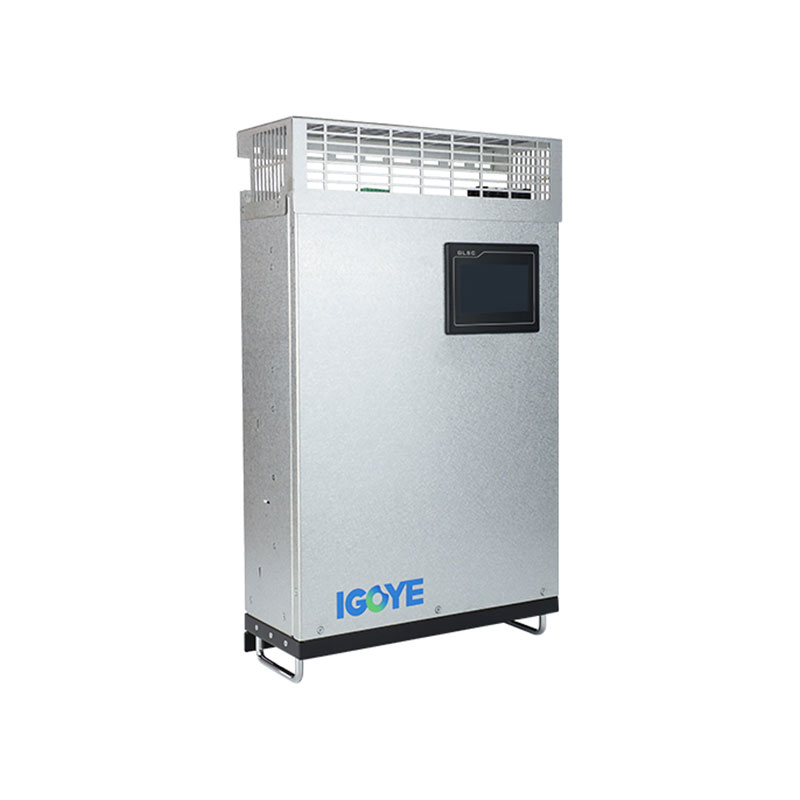

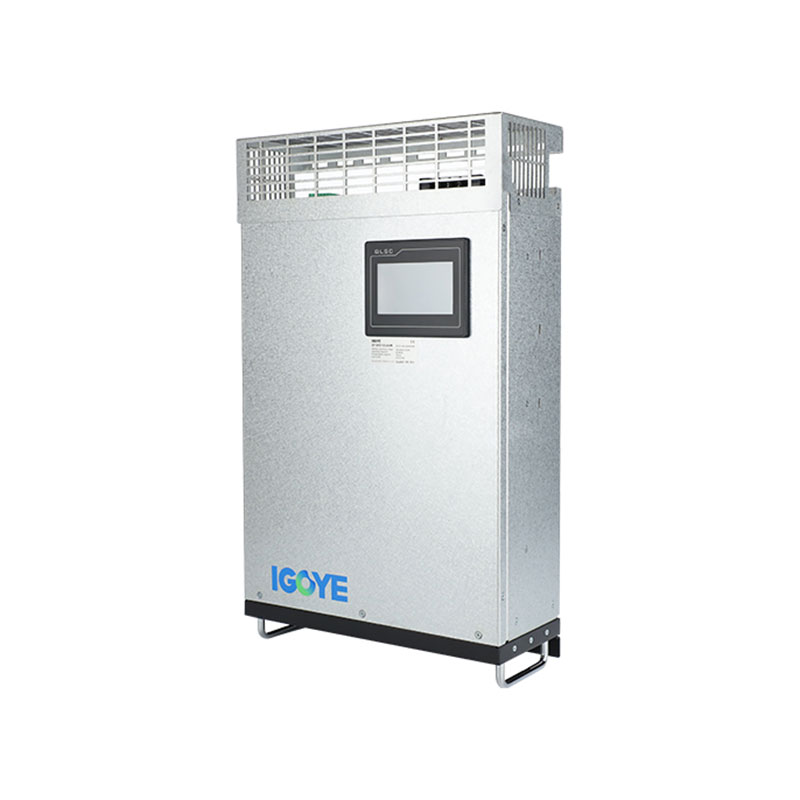

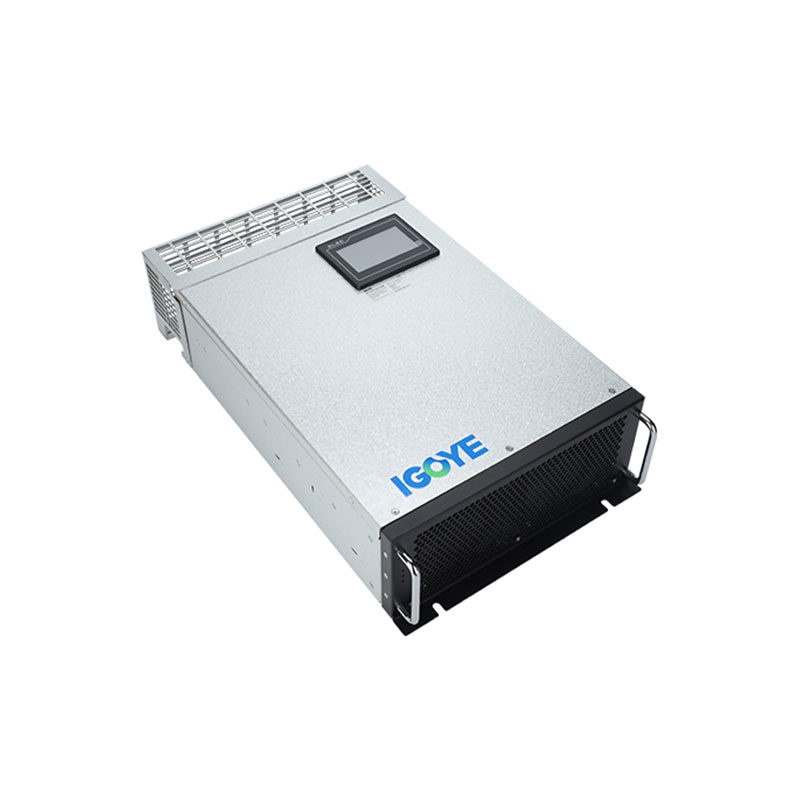

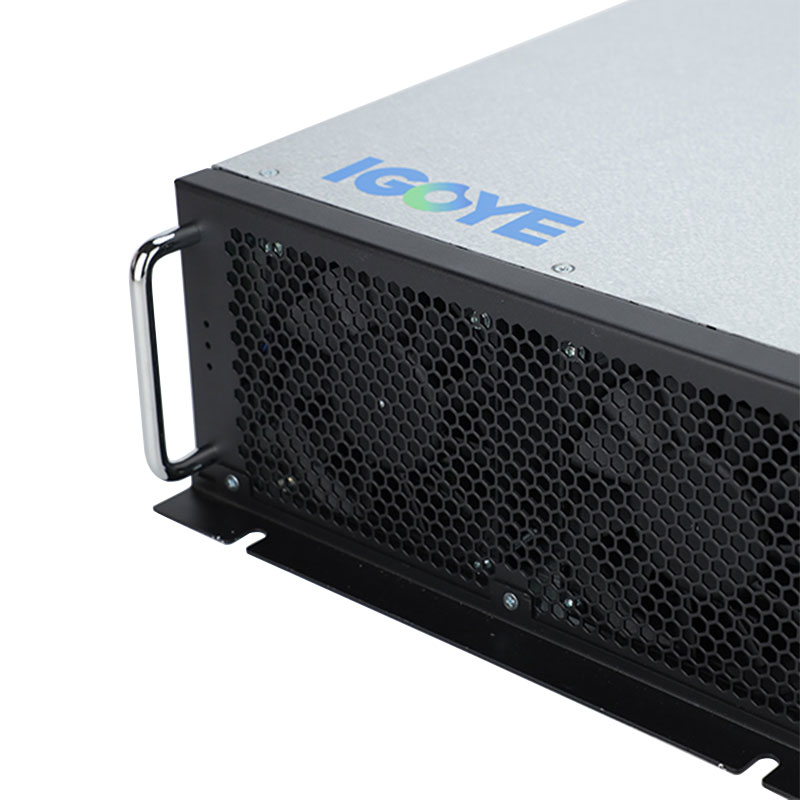

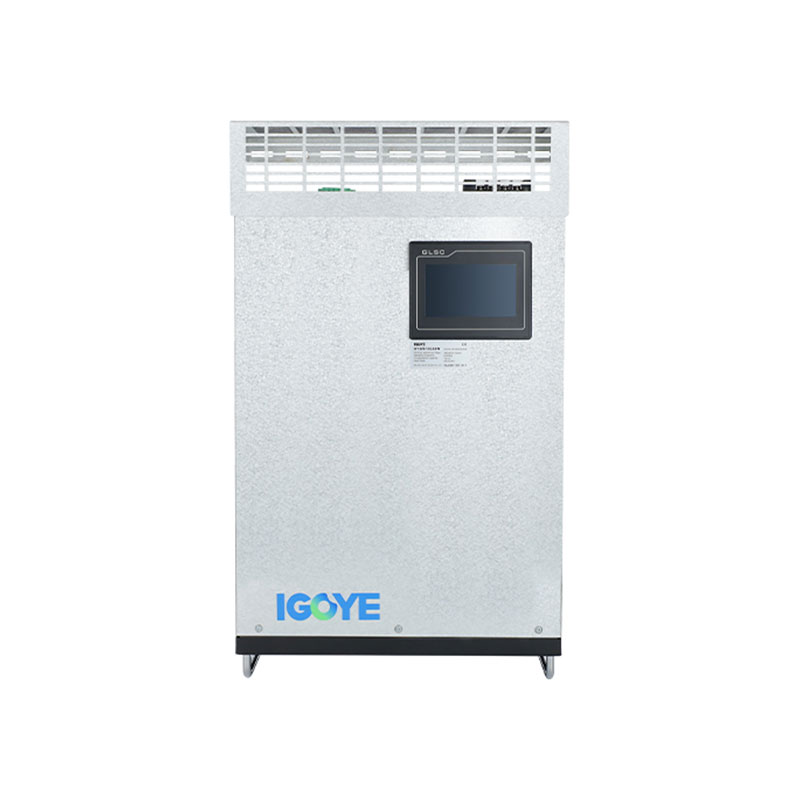

500V mtundu wovomerezeka wa vani

Chiwerengero cha anthu 500V (svg) chimapereka ndalama zobwezera mphamvu za magetsi 500v magawo atatu a magawo atatu. Imagwiritsa ntchito digito ya CPL ya CPL ya digito, mwayi wambiri, komanso ma algorithms atsogola mwachidule komanso yolimbikitsa, yofunsidwa kuti ithe kusintha kwa 10ms. Chotseka chodalirika chimatsimikizira zodalirika pofuna malo opangira mafakitale ndipo amapereka nthawi yosavuta yokonza. Ndi mphamvu ya 90kvar pa 500V, imayankha bwino mphamvu zomwe zimagwiritsidwa ntchito ndi mafakitale a zamagetsi.

Kufotokozera kwachitsanzo:

Mawonekedwe:

● Gwiritsani ntchito DSP + CPLD yonse ya digito ya digito, ukadaulo wapamwamba kwambiri wa algorithm ndi Pwgithm ndi PWM kuti mukwaniritse njira yothandizira komanso molondola.
● Chongani zopangidwa mobwerezabwereza, zomwe zimathandizira kulumikizana kwa ma module angapo, kumatenga malo ochepa ndipo ndikosavuta kusunga.
● Mamangidwe mwaluso a mpweya wodziyimira pawokha ndi nyumba zosungiramo pawokha zimatsimikizira kugwira ntchito kokhazikika kwa zida.
● Chitani chindapusa champhamvu champhamvu kwambiri kwa mphamvu zopangidwa ndi mphamvu zotheka, ndikuthetsa vuto lililonse nthawi yomweyo.
● Kuyankha mozama kwa katundu kuli pamlingo wa millisecond, komwe kumatha kulipira kwamphamvu komanso molondola kwa mphamvu yothandiza.

Mapulogalamu:

500v mtundu wocheperako wa rona wa vani ndi woyenerera ntchito zofuna kugwiritsa ntchito mphamvu yogwiritsa ntchito mphamvu pa magetsi pa 500V:

● Magetsi apakatikati pa mphamvu za mphamvu:Kuwongolera Mphamvu zamphamvu mu Makina a 500V, amachepetsa ndalama ndikuwongolera mphamvu.
● 500V Kulamulira ndi Kuchita:Kukulitsa magwiridwe antchito ndi luso la mikangano ya 500v popereka ndalama zamphamvu komanso zowunikira.
● Kubwezeretsanso Mphamvu pa 500V:Kuthandizira kuphatikiza kokhazikika kwa mphamvu zosinthika, monga mphamvu ya dzuwa ndi mphepo, mu 500v grids.
● 500V mafakitale a mafakitale:Kuwongolera kukhazikika ndi luso la njira za mafakitale 500v poyendetsa kusintha kwa mphamvu.
● Kukhazikika kwa voliyumu mu 500V maukonde:Kusungabe kukhazikika kwa magetsi mu 500V makonde, makamaka pamaso pa katundu wosinthasintha.

500v mtundu wocheperako wa rinto umapereka njira yodalirika komanso yothandiza pakugwiritsa ntchito mphamvu zamagetsi ndikutha kugwiritsa ntchito magwiridwe antchito am'madzi ndi kugwiritsa ntchito mphamvu zowonjezera.

Zolinga Zaukadaulo:

Model & Chizindikiro:
