Gawo la Atatu-waya makumi atatu

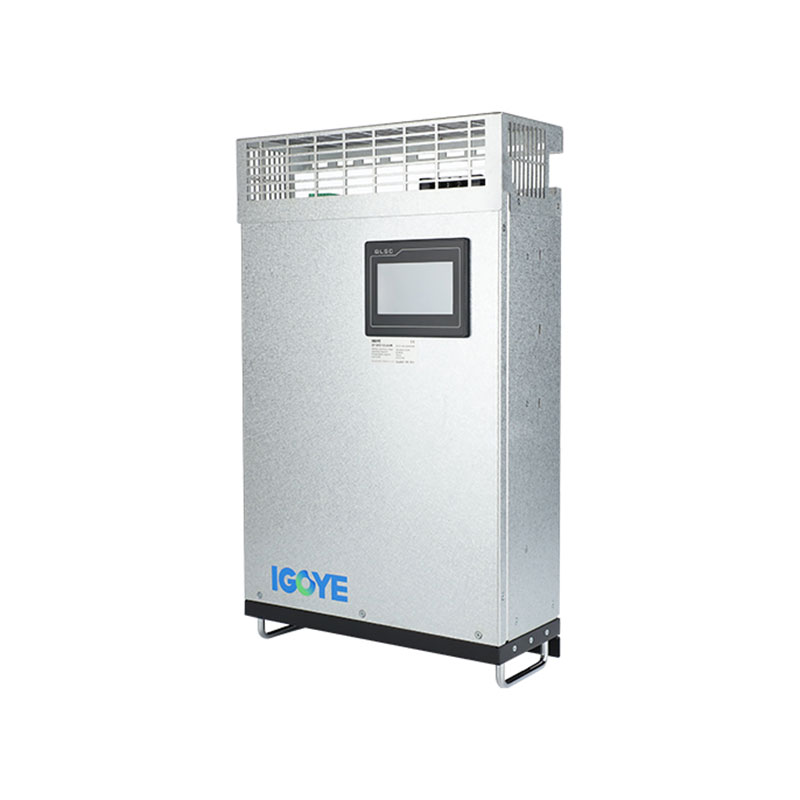

The Seetor atatu-waya-waya wa vani (svg) amapereka chinsinsi champhamvu kwambiri kwa gawo la magawo atatu 380v, 500V, ndi magetsi 690v. Kugwiritsa Ntchito DSPLAD ya CPSD Digital Kuwongolera kwa Digital ndi msonkhano wamagawo atatu, izi SVG imapereka chitsotso chenicheni komanso chomalangizo, ndikuyankha kwathunthu pansi pa 10ms. Makina opanga mota amalola kuti azikhala ndi vuto lofanana ndi magawo angapo. Makoma okwera pa khoma safuna kukhazikitsa malo. SVG iyi imayendetsa bwino kwambiri ndi kusinthasintha kwamphamvu kwa mphamvu, kukulitsa mphamvu yamagetsi ndi kukhazikika kwa dongosolo lazi kaya. Kupezeka mu mphamvu zochokera ku 15kvar mpaka 120kvar, gawo la mateji atatu-waya wa vanrator limapereka njira yothetsera kusintha kwa mapulogalamu osiyanasiyana.

Kufotokozera kwachitsanzo:

Mawonekedwe:

● Gwiritsani ntchito DSP + CPLD yonse ya digito ya digito, ukadaulo wapamwamba kwambiri wa algorithm ndi Pwgithm ndi PWM kuti mukwaniritse njira yothandizira komanso molondola.
● Chongani zopangidwa mobwerezabwereza, zomwe zimathandizira kulumikizana kwa ma module angapo, kumatenga malo ochepa ndipo ndikosavuta kusunga.
● Mamangidwe mwaluso a mpweya wodziyimira pawokha ndi nyumba zosungiramo pawokha zimatsimikizira kugwira ntchito kokhazikika kwa zida.
● Chitani chindapusa champhamvu champhamvu kwambiri kwa mphamvu zopangidwa ndi mphamvu zotheka, ndikuthetsa vuto lililonse nthawi yomweyo.
● Kuyankha mozama kwa katundu kuli pamlingo wa millisecond, komwe kumatha kulipira kwamphamvu komanso molondola kwa mphamvu yothandiza.

Mapulogalamu:

Mitundu itatu ya waya itatu ya waya itatu ndi yoyenereratu yothandiza kukonza mphamvu mu magawo atatu a magawo atatu:

● Makina oyendetsa mafakitale:Kukulitsa mphamvu ndi kukhazikika kwa mavidiyo atatu-mafakitale atatu.
● Nyumba zamalonda:Kuwongolera mtundu wa Mphamvu ndikuchepetsa mphamvu yamalonda pazogulitsa zamagetsi zitatu.
● Maulendo atatu oyendetsa bwino:Kubwezera kusintha kwamphamvu kwa mphamvu zomwe zimayambitsidwa ndi katundu wamagalimoto, kukonza bwino magalimoto ndikuchepetsa zosokoneza magetsi.
● Kuphatikiza kwamphamvu kwamphamvu:Kuthandizira gridi gridi pamakina atatu-am'madzi atatu omwe amagawidwanso mphamvu zamagetsi.

Makina atatu ochepera atatu amapereka njira yolimbikitsira yotha kukonza mphamvu ndi luso la magetsi atatu.

Zolinga Zaukadaulo:

Model & Chizindikiro:
